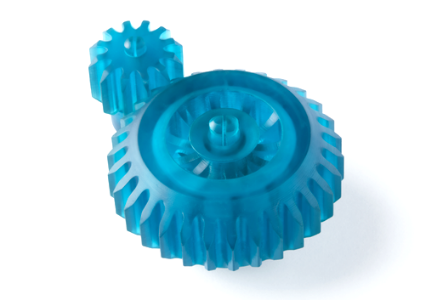

Tough Resin balances strength and compliance, making it the ideal choice for prototyping strong, functional parts and assemblies that will undergo brief periods of stress or strain.
Tough resin is perfect for those looking to create extremely sturdy prototypes, interface and press fits as well as assemblies. This is thanks to its high-impact strength and compliance. If you need your parts to return to their original shape after force is applied, tough resin is the way to do. To order tough resin parts from us, please click the button below now to visit our state-of-the-art online ordering system.
Green: 5040 psi/li>
Post-Cured: 8080 psi
Formlabs Form 3 Printers
Phase | Green | Post-Cured |
---|---|---|
Ultimate Tensile Strength | 5040 psi | 8080 psi |
Tensile Modulus | 239 ksi | 387 ksi |
Elongation at Break | 42% | 24% |
Flexural Strength at 5% Strain | 3020 psi | 8790 psi |
Flexural Modulus | 90.3 ksi | 241 ksi |
Notched IZOD | 0.61 ft-lbf/in | 0.71 ft-lbf/in |
Heat Deflection Temp @ 1.8 MPa | 91.1 °F | 119.3 °F |
Heat Deflection Temp @ 0.45 MPa | 104.7 °F | 119.3 °F |
